Tire Cleaning Production Line- Tiptop Laser

A tire laser cleaning production line is a manufacturing process that uses laser technology to clean the inner surface of tires before they are painted or coated. The process involves the use of high-powered pulsed lasers to remove dirt, dust, and other contaminants from the surface of the tire, creating a clean and smooth surface for the next stage of the production process.

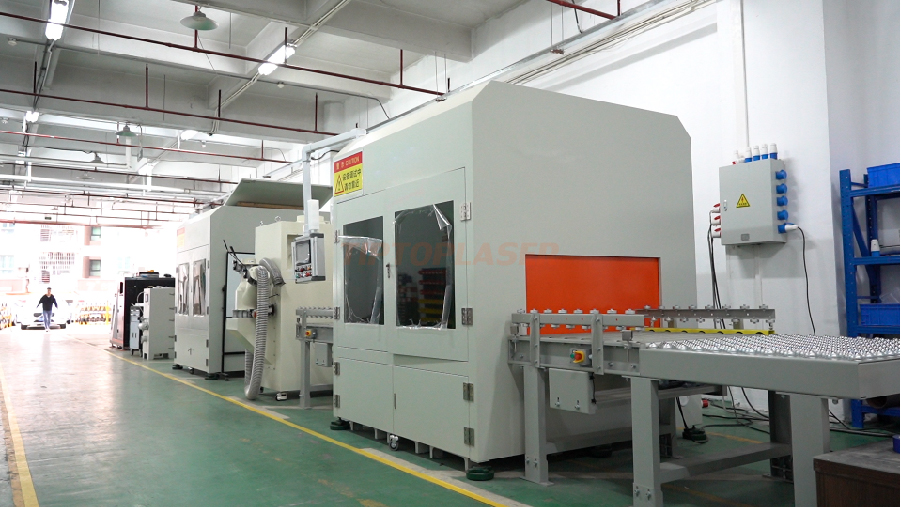

A typical tire laser cleaning production line consists of several stages, including:

Preparation: The tires are first loaded onto a conveyor belt, which transports them through the cleaning line. Before cleaning begins, the tires may be adjusted by position tool, and make center the tire.

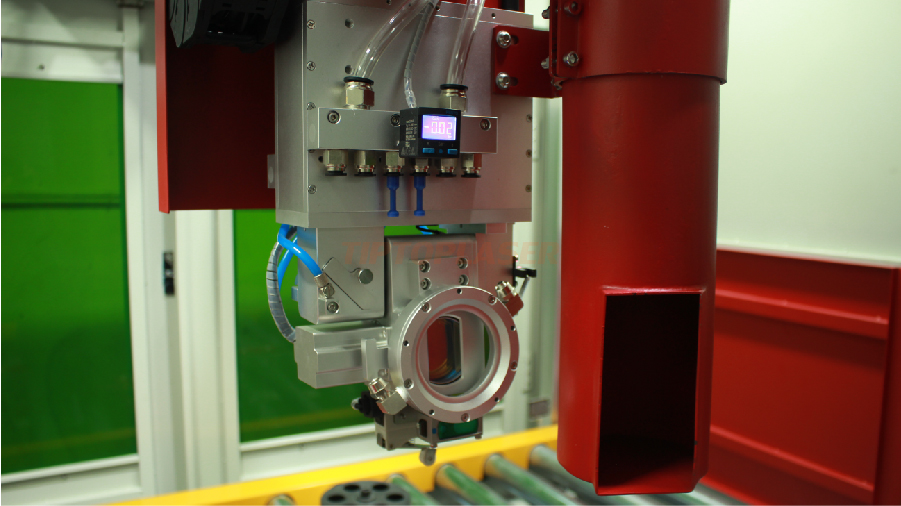

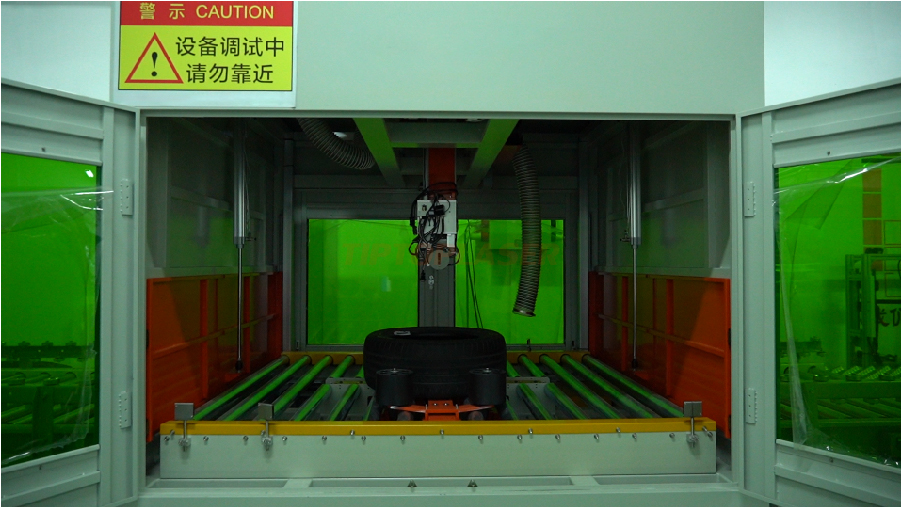

Laser cleaning: The tires are then passed through a series of laser cleaning stations, each of which uses high-powered lasers to remove contaminants from the surface of the tire. The lasers vaporize the dirt and other debris, leaving behind a clean and smooth surface. During this stage, there are a vacuum cleaner work together aside with laser cleaning head, and help to collect the dust and throw it outside the cleaning station.

Inspection: After the cleaning process is complete, the tires are inspected to ensure that they are clean and free of any residual dirt or contaminants.

Painting or coating: Once the tires have been cleaned and inspected, they are ready for the next stage of the production process, which typically involves painting or coating the surface of the tire.

Tire laser cleaning production line parameters-tire conveyor belt

Maximum conveying speed 40m/min
Internal net width of conveyor line 1000mm
Centering accuracy 土3m’ mmm

Tire laser cleaning production line parameters- cleaning Station

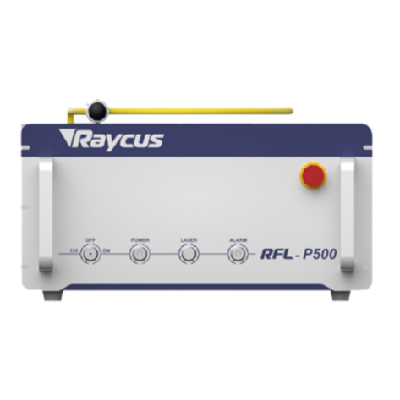

laser power 500W/1000W
Laser head working time 50000 hours
Laser wavelength ≤1064nm
Pulse frequency 2- 50kHz
Scanning speed 10-8000mm/s
Laser cleaning line width 5-100mm
Cleaning distance 100-200mm

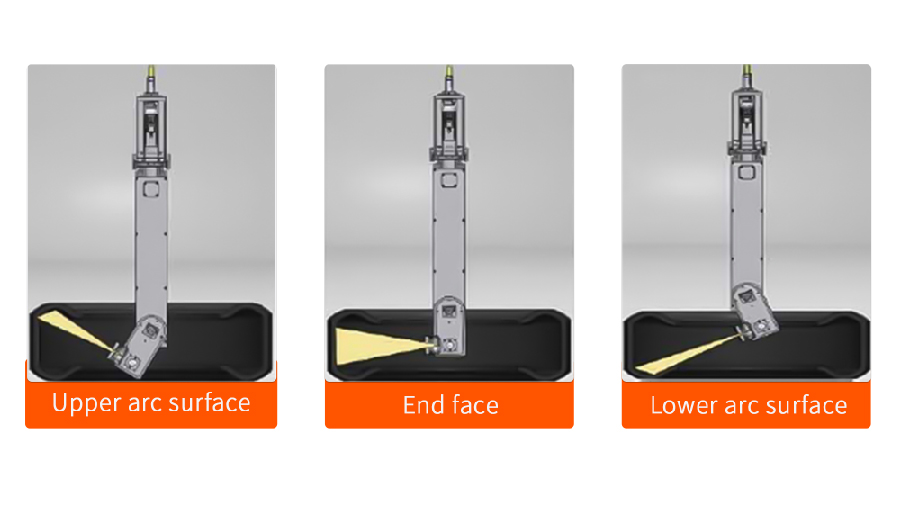

Laser head cleaning width range 100-400mm
Radial movement range of laser head MAX 500mm

Production Line Quotation

If you want more about the tire laser production line, welcome contract us freely >>
