Laser Welding Machine
Laser Welder Industry-Ready Solutions
Laser Welding Machine: 2022 Best Laser Welder For Sale
Laser welding machine also called laser welder, laser beam welder.
Laser welding machine is the perfect tool for precision welding, the material suitable for metal welding, mold welding, jewelry welder and so on. Laser welder use laser source to produce high temperature and melt the materials and then joint the saw together in short time. Thanks to the quick programming and simple operation, the user get benefit and the laser welder become the ideal tool in welding industry compared to traditional manual welding method.
Our TIPTOP company as one of the leading laser welding machine manufacturers,which the laser welding machine is easy to learn, simple and fast to set up, our laser welders include 4 laser welder models : 4 axle automatic laser welding machine, handheld laser welder, jewelry laser welder, and mold laser welder. All of these welding machine provides consistent high quality results across a wide range of metal materials and thickness. For example, the 1000w and 2000w handheld laser welder is good choice laser welding machine for stainless steel, and this is also a workable laser welding machine for aluminum. Besides those, we have jewelry laser welder in desktop model and split jewelry welder as well as integrated jewellery laser welding machine.
Mini laser welder
MINI LASER WELDING MACHINE Input power: 2KW Output power: 100w Maximum single pulse energy: 80J Laser wavelength: 1064nm Spot size: 0.3-2.5mm Power regulation: 1-100% Pulse width adjustment: 0.1-15ms Frequency adjustment: 1-20HZ Working focal

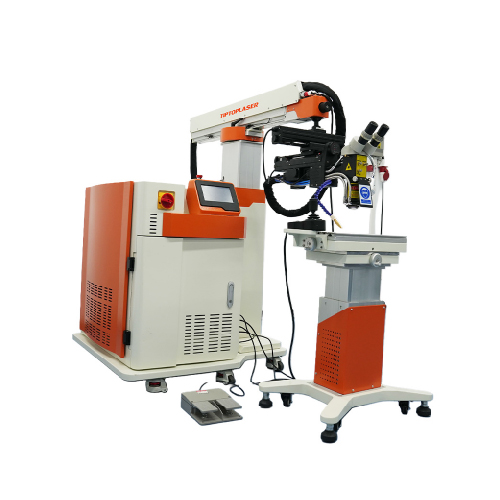

Mold Laser Welding Machine
400w mold laser welder Adopt well-known ceramics, cor-rpsion resistance, high tempera-ture resistance, cavity life (8-10) years, xenon lamp life is more than 8 milion times。Electric
Desktop Jewelry Welder
Desktop Jewelry Laser Welding Machine Model: TPW- 200W desktop jewelry laser welder Jewelry; diamond rings pendants, accessories, necklaces, etc. The desktop is compact and easy to
Jewelry Laser Welder
Jewelry Laser Welder Model:TPW-200W Jewelry Laser Welder Jewelry laser welding machine with seperate chiller. Model:TPW-200W Laser wavalength : 1064nm Pulse width:0.2-10ms Continuous welding frequency: 0.5-20hz
Handheld Laser Welding Machine
Handheld Laser Welding Machine Model: TPT-1000W/1500w/2000w handheld laser welding machine Up to 4X faster than TIG Easy to learn and operate with highest process consistency High quality
4 Axis Automatic Laser Welder
4 axis automatic laser welding machine Model: TPT-1000W Automatic laser welding machine High weld consistency Suitable for mass production，high efficiency Weld seam is smooth, no
Our Innovations
Laser Welding Machine Application
Laser Welder In Automotive industry
Delivering a focused heat source, laser welding creates a strong seam at a high speed. The processes and applications of laser welding are most prominent in the automotive industry, where lasers boost productivity at a low cost when welding automotive parts – such as roof , door or filter assemblies – together.
Laser Welder In Electronics industry
Laser welding machines are widely used in the electronics industry. Due to the small heat-affected laser welding zone, fast heating concentration, and low thermal stress of laser welding, the advantages of laser welding machine are shown in the packaging of integrated circuits and semiconductor device housings, and laser welder has also been applied in the development of vacuum devices. And the laser welder advantage in dedicate precision welding in the thickness of the elastic thin-walled corrugated plate which in the thermostat is 0.05-0.1mm, this is difficult to solve by traditional welding methods, so fiber laser welding machine is effective and widely used.
Laser Welder In Jewelry and medical industries
Laser welding machine can used in small and high precision industry such as jewelry and medical industries, because the laser welding machine work process will not produced the splatter, which will be helpful for the sanitary requirement in medical devices and laser welder has small welding spot, so laser welder jewelry is popular used in jewelry welding and repairing.
Laser Welder In Metal Mold Industry
Laser welding machine has accuracy and minimal heat generation allow for welding of thin or delicate metal components, Laser welding processes can also be used in heavy industrial settings, for mold parts.
FAQ: Laser Welding Machine
What is laser welding and how does it work?
Laser welding is the method of using a high-powered laser beam to melt and bond materials such as metals or thermoplastics to create a weld. Thin materials can be welded with lasers because it uses such a concentrated heat source. The concentrated heat source enables thin materials to experience a high welding speed of meters per minute.
How much does a laser welding machine cost?
How does fiber laser welding machine work?
The laser welder focused laser beam penetrates the workpiece and forms a cavity called a ‘keyhole’, which is filled with metal vapour or ionised metal vapour (plasma). As the laser beam moves, the molten metal flows around the keyhole and solidifies in a deep and narrow seam along its path. This expanding vapour or plasma contributes to the prevention of the collapse of the molten walls of the keyhole in to this cavity. … Deep penetration welding is then achieved by traversing the keyhole along the joint to be made (or moving the joint with respect to the laser beam) and results in welds with a high depth to width.Fiber laser welding machine are now widely used for welding of a very wide range of thicker metals.
How much laser power do you need for laser welder?
The good news is that there is a general ‘rule-of-thumb’ that can be used to make an estimate on how much laser power you need to weld most carbon and stainless steels. Here it is: At 2 meters/minute (80 IPM) travel speed, you will need about 1-kW of laser power for every millimeter you need to penetrate.
What is the best welder?
While the reasons for home use of a Mig welder are varied, there are still a great number of Mig welders seen as the best in their field for home use. These Mig welders are the types that are flexible in a wide number of uses while also being portable and easy to use. The Hobart Handler 140 MIG welder is the most popular model at this time.
Is laser welding good?
Laser can do single pass welding up to about a half an inch, versus about five passes for MIG welding, depending on the processor you use.
Due to its tailorable spot size, laser welding is an excellent joining method for thin or delicate metal parts. The spot size can be specifically designed to only melt the proper amount of metal to achieve the weld, thus minimizing the occurrence of heat-induced internal stresses, distortions, and defects.
How thick can laser welder weld?
The laser welder CAN weld steel plates with different thicknesses of 1mm, 2mm, 3mm, 4mm and 5mm. The power of the welding machine is 300W, 600W and 1000W respectively. Welding with thickness of 3mm is the best. The thickness of surfacing shall not exceed 1.5mm, and for thicker, it would be use the higher power in laser welding source, and we have low power laser welder of 100w, 200w,300w,400w,500w, and high power of 1000w laser welder, 1500w handheld laser welding machine, as well as 2000w laser welder and 2500w laser welders.
Can you laser weld aluminum?
Laser beam welding is one of our most popular services for welding aluminum. The process is ideal for fast, clean welds. … Laser beam welding can be used with crack sensitive materials, such as the 6000 series of aluminum alloys when combined with an appropriate filler material such as 4032 or 4047 aluminum.
