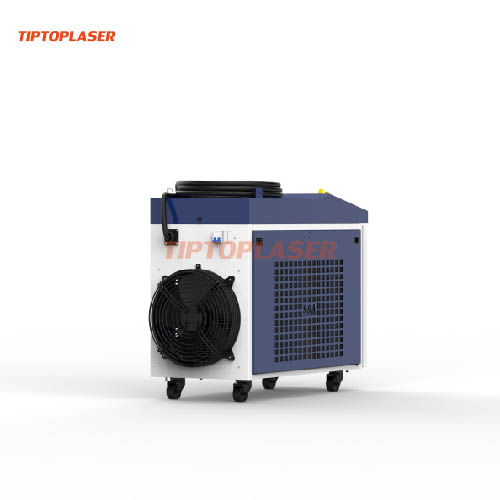

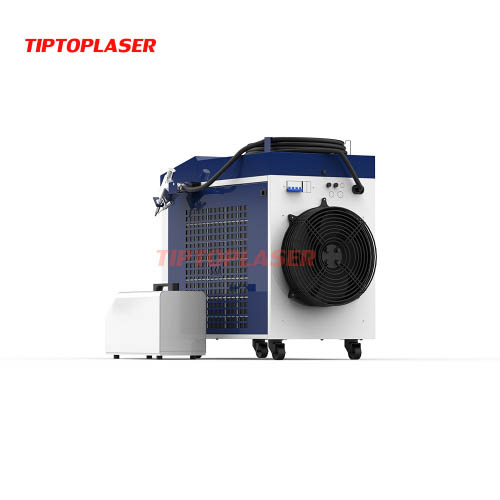

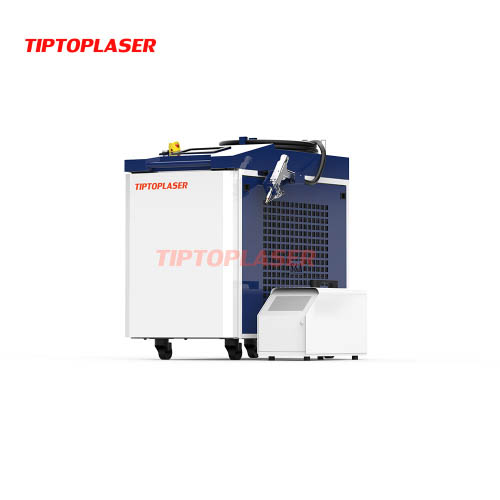

2000w 4 in 1 laser machine

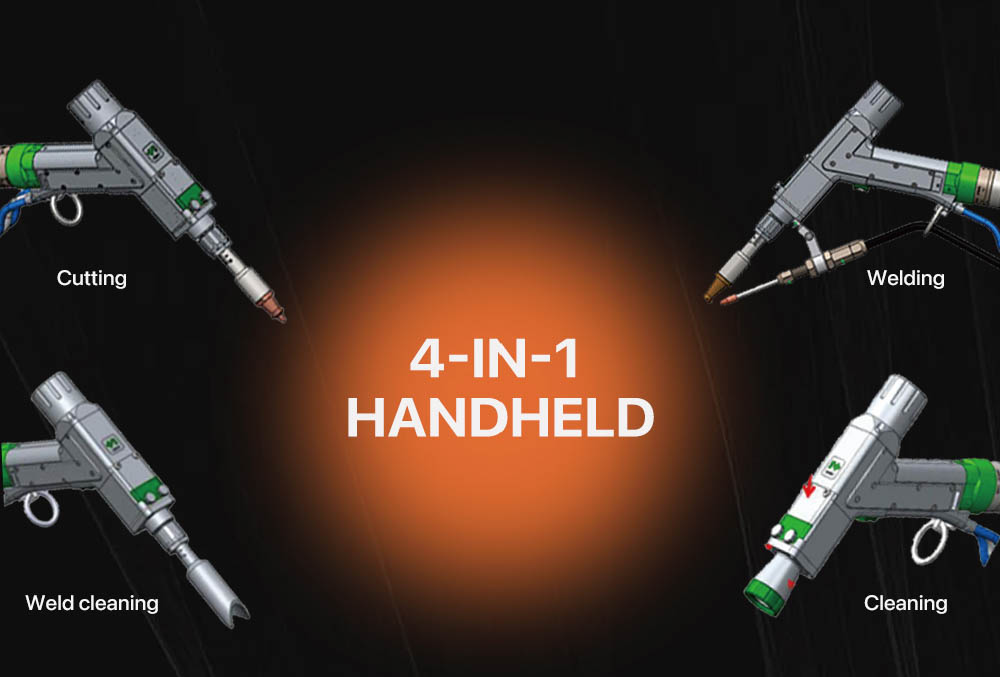

Multiple function laser machine
- Laser cutter
- Laser cleaning machine
- Laser welding machine

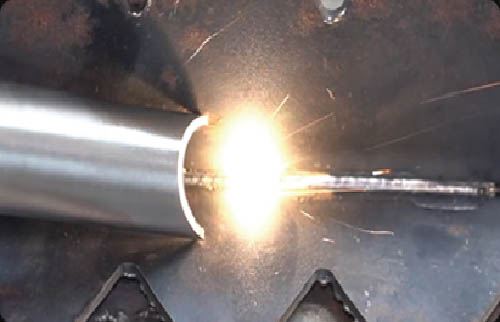

- Laser weld cleaning
Facebook
Twitter
Reddit
LinkedIn
Laser cleaning machine specification
| RATED OUTPUT POWER (W) | 3000W | CENTER WAVELENGTH (NM) | 1080+3 |
| MAXIMUM MODUL ATION FREQUENCY (KHZ) | 20 | MAXIMUM POWER CONSUMPTION (W) | <10600 |
| POWER ADJUSTMENTRANGE(%) | 10-100% | WORKING VOLTAGE (VAC) | 380V+10% 50/60Hz |
| COOLING METHOD | Water cooling | LASER HEAD WEIGHT | 0.71kg |

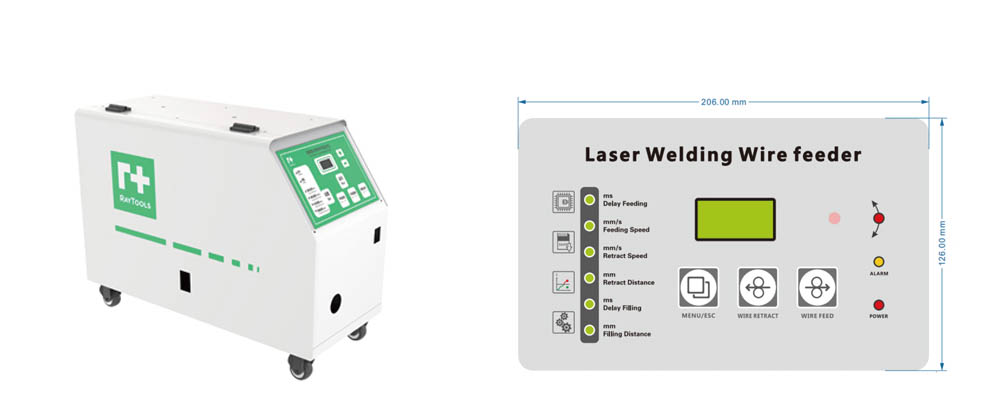

2000w 4 in 1 laser machine wire feeder spec
Brand | JNCT | Model | RT-HWS-YB80A |
Power | 80W | Motor | PMDC motor |
Speed Adjusting | PWM open-loop adjusting | Wire Size | 0.6/0.8/1.0/1.2/1.6/2.0 (mm) |
Feeding Speed | 5-100(mm/s) | Voltage | DC24V |
Size | 580*310*460mm | Weight | 15kg |
2000w 4 in 1 laser machine spare parts
CONTROL PANEL
- Touch screen makes you change the parameters quickly when wearing gloves.
- Multiple sets of parameters can be saved and there is no need to adjust again for multiple welding in the future after one test.
- It can support Chinese,English,spanish German,Korean,Vietnamese,Russian,Japanese language interface.
- Customize according to customer’s requirements.
CONTROL SWITCH
- Simplified switch system, only one power switch,saving the operator’s time.
- The emergency stop switch protects the operator and quickly stops the equipment from working.

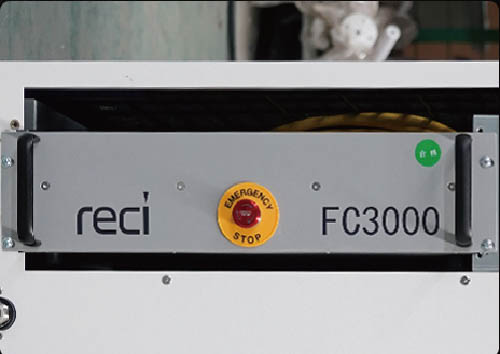

LASER SOURCE
- Power:3000W
- Continuous fiber laser adopts modular design.Highlyintegrated system,mainte-nance-free, and high reliability.
- The laser power is continuously adjustable, with high beam quality and high laser stability.
- It is an ideal laser source for laser fine cutting, precision welding and other.

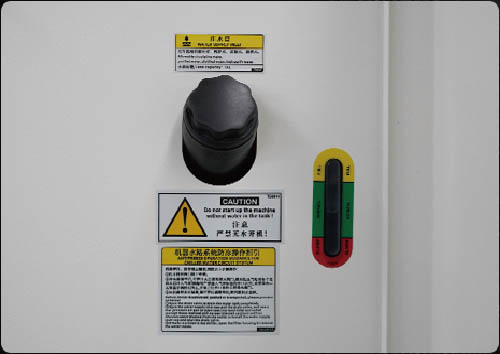

WATER CHILLER
- Adopted water chiller system, the virtuous cycle system to better guarantee the operation of the machine.
- When using an industrial chiller, pure water is used in summer, and antifreeze is used when the room temperature is below 5 degrees Celsius in winter.
- Switchback to pure water when the temperature warms up.

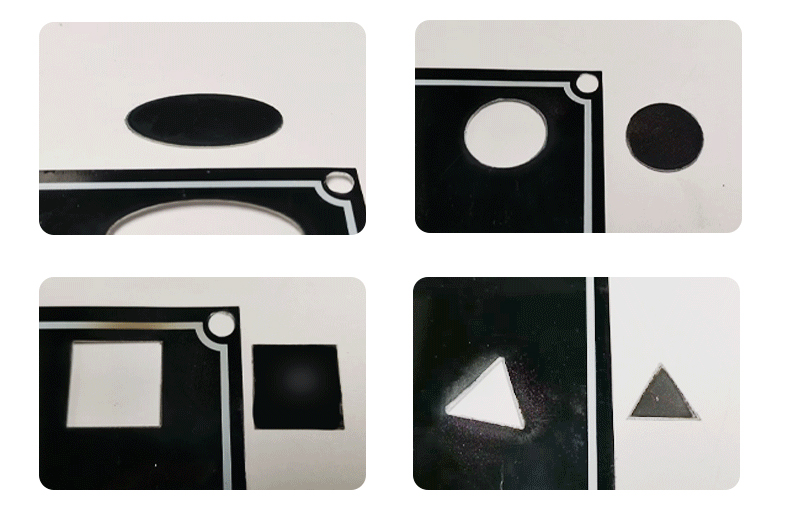

2000w 4 in 1 laser machine work show
The biggest function of this 4 in 1 laser machine is cleaning, it can clean all kind of wood and metal stains, besides the cleaning function, it also can do the weld and cutting work.
